Install a Clarion 2nd Gen. radio with 8-pin wired remote connector and retain 1st Gen. 5-pin remote without rewiring.

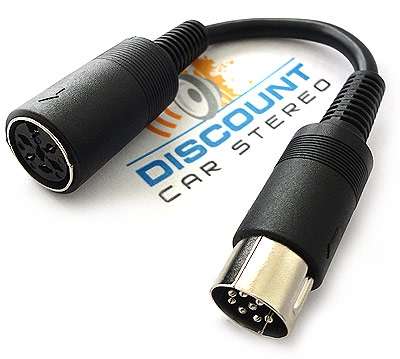

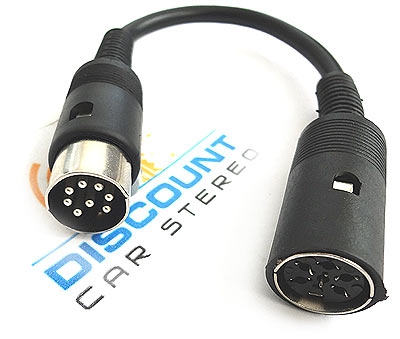

When replacing a 1st Gen. 6-pin radio, with a 2nd Gen. 8-pin radio; retaining the 1st Gen. remote (already fitted) will require the CCUMRA1.This is because all Clarion 1st Gen. marine radios, wired remotes, and extension cables manufactured between 1998 to 2008 use a 6-pin connection. As of 2009, all Clarion 2nd Gen. marine radios (e.g. M309 etc), wired remotes (e.g. NW2 etc.); and remote extension cables (e.g. MW-RXC-RET); all use 8-pin connections. To replace a 1st Gen. radio (6-pin) with a 2nd Gen. radio (8-pin); and keep the old remote is not possible without rewiring, but for less than $50, the CCUMRA1 adapter cable makes it possible to upgrade the radio and retain the 1st Gen. wired remote control on upper deck, transom, dive platform etc.
Warning: If the remote has an LCD screen (e.g. M301RC etc.); the display function will go
blank; but the buttons (e.g. FF, RW, Pause, Play etc.) remain functional.
» Use to install a 2nd Gen. radio (e.g. CMV1, CMD6, M505, M309, CMS1 etc.) and retain 1st Gen. remote (e.g. CMRC1, CMRC2, M101RC M102RC etc.) -- See drop-down and application guide for full listing.
» Boat must have a 1st Gen. 6-pin marine remote extension cable (e.g. M101RC) or 6-pin splitter cable (M101RYC)
» Mute button on non-LCD remotes (e.g. CMRC2 SB, CMRC2-BSS) may or may not function.
» LCD remote Track number, radio station information etc. will no longer display but function buttons (track up/down, Vol, etc.) remain operational.- Don't ignore this warning!
» IR remote signal pass-through (e.g. MF-1 etc.) is not supported
Do I need the CCUMRA1, CCUMRA2 or both?
1. To install a 2nd Gen radio (8-pins ),and retain 1st Gen. remote (6-pin); requires the CCUMRA1.
2. To install a 2nd Gen. remote (e.g. MW1, MW2, MW3, MW4 etc.) and retain a to retain 1st Gen. (6-pin ) radio; requires the CCUMRA2.
3. To install a 2nd Gen. radio (8-pins) and a 2nd Gen. remote (8-pins); requires both the CCUMRA1 and CCUMRA2. Please check application prior to ordering.
4. To install a 3rd Gen. 5-pin screw on type radio (e.g. CMM-30 etc.) to a 3rd Gen. 5-pin screw-on type remote (e.g. CMM-10, CMM-20, CMM-30 etc.), requires our CMRR-C5.
Please review Clarion marine remote Application guide and INSTALL GUIDE prior to ordering.
Footnotes: [See drop-down menu above for reference]
* Remotes with LCD screens and Mute button (if equipped) will no longer function
All installations requires a 6-pin remote extension "boat" cable. (No exceptions)

1.
Remote control LCD display will NO longer illuminate; however, function buttons (e.g. Track up/down, volume etc.) remain operational.
2. To connect newer remotes (e.g. NW1, NW2 etc.), to older radio (6-pin), purchase our
CCUMRA2 instead.
3.
Made by us for use on Clarion marine products only. Not applicable to other brands or mix-n-match applications.
