Install a Continental, VDO or Becker radios in vintage European vehicles.
Continental, VDO and Porsche Classic PCMM radios are slowly becoming the choice for many looking to upgrade the original Blaupunkt radio in older European vehicles (e.g. Mercedes, BMW, Porsche etc.) but due to wiring differences, the replacement radios are not always plug-n-play which means a decision must be made to cut or not cut the factory speaker terminals. Enter the BHA-BLAU

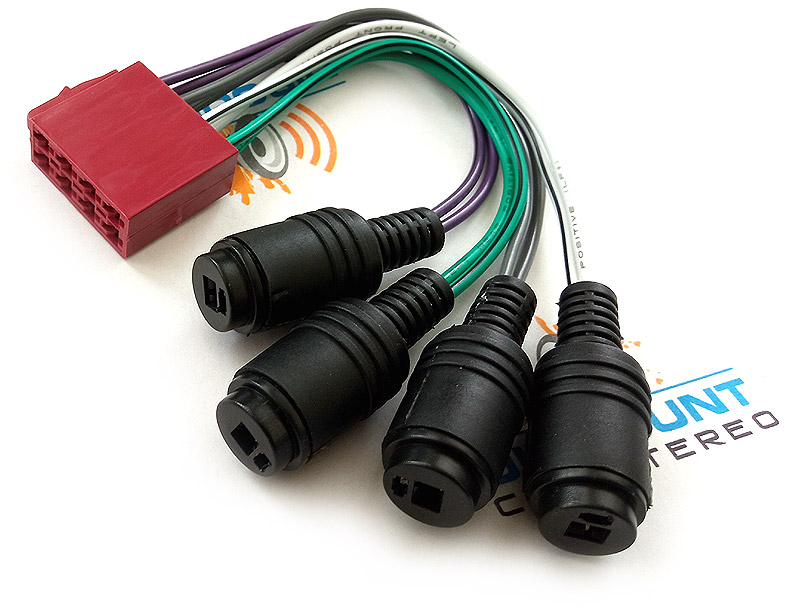

The BHA-BLAU plug-n-play harness preserves factory speaker wiring integrity should it become necessary to re-install the original radio.
Application: Replace Blaupunkt SQR 46, SQR 47, SQR 48 radios (e.g. Reno, Hamburg, Toronto, Montreal, Lexington, Heidelberg, Bremen, Washington etc.) with Continental/VDO, Porsche PCMM and other European ISO plug radios in vintage Porsche, (e.g. 964, 928, 911 etc.), BMW, Mercedes .
Note: Works in non Hi-FI applications (No Blaupunkt Hi-Fi amplifier). Vehicles with Blaupunkt Hi-Fi systems; requires our ARH-BKT instead.
The BHA-BLAU installs behind the dash and connects to OE male "DIN" speaker terminals.

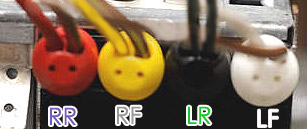

a. Remove radio and disconnect white, yellow, black and red speaker plugs
b. Connect white plug to harness White (L front), black to harness green (L rear), Yellow to harness gray (R front) and red to harness purple (R rear)

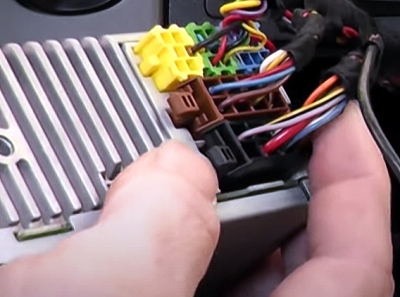

c. Connect harness 8-pin iso plug to replacement radio speaker outputs (B chamber) .
1. Connects to new radio speaker port (B chamber)
2. Not applicable to vehicles with Blaupunkt amplifier (BQA 80, BQB 80, 928 645 435 00 etc.). These requires our ARH-BKT
