CMRR-C5 Clarion, Kicker, JL Audio 5-pin digital marine remote installation harness

In stock (95 available. May require assembly*)
  • $69.98
Market price: $109.95, you save $39.97
-36%
Connect a 5-pin threaded marine remote to matching digital receiver.
Applicable only to vessels with this pre-installed 6-pin extension cable.
Restrictions apply. Please read entire description, alerts and warnings prior to ordering.
Score: 5.00 (votes: 1)
No reviews.
Qty:
  • Net weight
    0.8 lbs
  • Part Number
    CMRR-C5
Use 6-pin remote control extension cable already fitted to connect a Clarion, Kicker or JL Audio 5-pin digital receiver to matching 5-pin remote control.

If you plan to, or have already installed the newest Clarion, Kicker or JL Audio 5-pin threaded digital marine receiver (e.g.CMM-30, MM55 etc.) but unable to install a matching 5-pin threaded wired remote control (e.g. CMR-30, KRC55, MMR-20 etc.) on swim platform, transom etc.; the CMRR-C5 installation harness is for you!!! Connecting a wired remote control to these new digital radios requires routing/installing a new 5-pin extension cable (e.g. CMC-RC-25, MMC-25, KRCEXT25 etc.) which could be daunting, expensive and (in most instances); virtually impossible! but if your vessel has a legacy (old) 6-pin extension cable already fitted; then connecting a 5-pin threaded remote (on swim platform, transom etc.) to matching 5-pin digital receiver (in cockpit, helm etc.) becomes a "breeze" thanks to the CMRR-C5 conversion cable kit. One cable connects the 5-pin digital receiver (e.g. CMM-30, KMC5 etc.) to the front end of the 6-pin extension cable already fitted, and the other cable connects matching 5-pin remote control (e.g. CMR-30, MMR-20 etc.) to the other end thus eliminating the need to install another extension cable (e.g. CMC-RC-25, MMC-25 etc.). Please take a minute to review the install diagram prior to ordering.
Note: If vessel has multiple remotes (up to 3); you may purchase our CMRR-C2 cables for each additional 5-pin remote.
» Connect Clarion 2020-Up 5-pin threaded digital remote controls (e.g. CMR-10, CMR-30 etc.) to Clarion digital media receivers (e.g. CMM-30 etc.) in any boat with a 6-pin extension cable already fitted.
» Connect Kicker digital remote controls: (e.g. KRC55 etc.) to Kicker digital media receivers (e.g. KMC6 etc.) in any boat with a 6-pin extension cable already fitted.
» Connect JL Audio digital remote controls (e.g. MMR-20 etc.) to JL Audio digital media receivers (e.g. MM55 etc.) in any boat with a 6-pin extension cable already fitted.
» Includes matching 5-pin non-NMEA 2000® (male/female) connector/plug (fits 5-pin remote control /digital media receiver)
» includes matching 6-pin plug/connector. Fits 6-pin "extension cable" (M101RC) or 6-pin splitter cable (M101RYC) already fitted.
» To install these new 5-pin threaded receivers/remotes; the boat owner is required to run/install a new extension cable (e.g. CMC-RC-25, MMC-25, KRCEXT25 CMC-RC-25, MMC-6 etc.).
» The CMRR-C5 is a two part kit and each cable is approximately 6 inches long.
» Not applicable to JL Audio MMR-40 NMEA 2000 with Micro-C connector
» Not applicable to connecting Clarion 6 or 8-pin radios/remotes to Clarion 5-pin digital radios/remotes (these are not interchangeable)
[Please read all requirements and warnings listed below prior to purchasing this part]
1. This kit applies only if a 6-pin extension cable (e.g. M101RXC-RET, MW-RXC-RET etc.) is already fitted.
2. Use when installing Clarion 3rd Gen. 5-pin remote control to matching receiver in any vessel with a 6-pin extension cable (e.g. M101RXC-RET, MW-RXC-RET etc.) already fitted.
3. Use when Installing JL Audio 5-pin threaded remote control to matching receiver in any vessel with a 6-pin extension cable (e.g. M101RXC-RET, MW-RXC-RET etc.) already fitted.
4. Use when installing Kicker 5-pin threaded remote control to matching receiver in any vessel with a 6-pin extension cable (e.g. M101RXC-RET, MW-RXC-RET etc.) already fitted.
5. Not for connecting older Clarion radios to new digital remotes (e.g. CMR-10 etc.) or vice versa. Both units (remote & radio) must have 5-pin screw-on type connection.
INSTALLATION (Only applicable if vessel has a 6-pin extension cable already fitted)
1. Locate 6-pin extension cable behind radio cavity.
2. Locate the 5-pin screw-on remote cable on the digital receiver

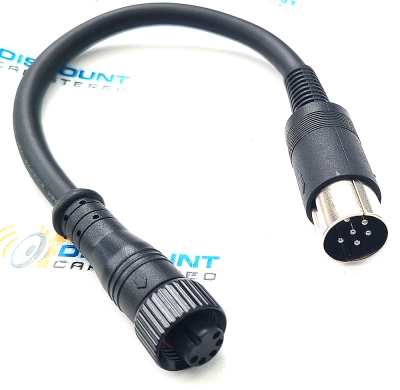

3. Align and screw-on the CMRR-C5 5-Pin male plug to the 5-pin radio remote cable connector.
4. Connect the CMRR-C5 6-pin connector to the 6-pin plug on the extension cable.
5. Go to the remote location and locate the other end of the 6-pin extension cable

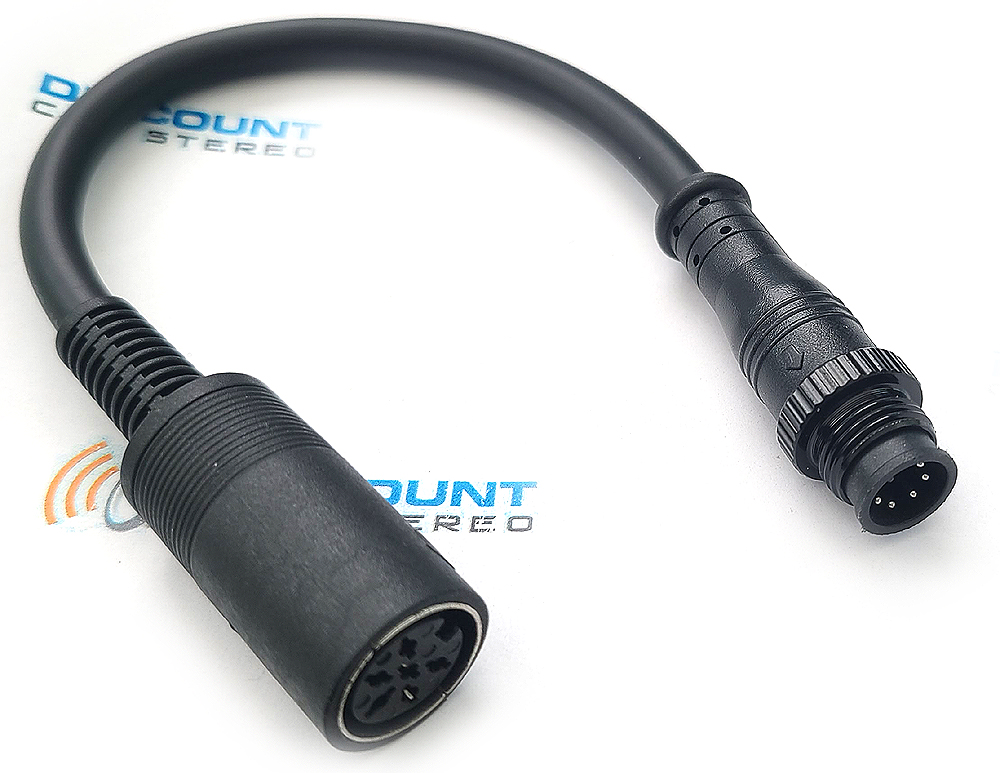

6. Connect CMRR-C5 6-pin male plug to the 6-pin connector on the extension cable
7. Align and screw-on the CMRR-C5 5-pin connector to the 5-pin remote control (e.g. CMR-10) plug.
8. Install the 5-pin remote control as per the included instructions.
See INSTALL DIAGRAM prior to ordering.

Footnotes:[See drop-down menu for reference]
* with 5-pin threaded "REMOTE" connector only.

Alert: The CMRR-C5 kit connects to the 6-pin extension cable cable already fitted. (Will not work without it)

1. Use to install Clarion, Kicker & JL Audio 5-pin digital marine remote to matching receiver in any vessel with a 6-pin extension cable already fitted.
2. Not suitable for connecting an older Clarion radio/remote with a new 5-pin digital remote or radio or viceversa.
3. Not suitable for brand mixing. Both the digital remote and radio must be of the same brand and vessel must have a 6-pin extension cable already fitted.
4. Made by DiscountCarStereo.com for use on recent Clarion, JL Audio and Kicker digital marine products only.
