Use the 6-pin extension cable already fitted to connect a Clarion, Kicker or JL Audio 5-pin digital receiver to a remote control.

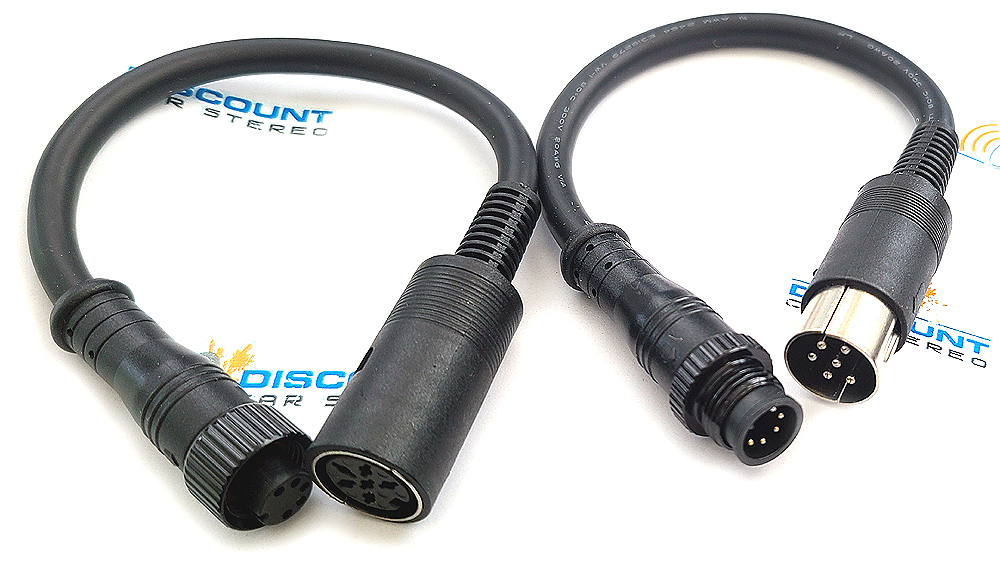

If you plan to, or already has installed the newest Clarion, Kicker or JL Audio digital marine receiver and want to add a matching 5-pin threaded wired remote control (e.g. CMR-30, KRC55, MMR-20 etc.) to dive platform, transom etc.; requires installing/routing a 5-pin extension cable (e.g. CMC-RC-25, MMC-25, KRCEXT25 etc.) which could be daunting, expensive and (in most instances); virtually impossible! but if your boat has a legacy (old) 6-pin remote extension cable already fitted; installing a 5-pin threaded remote (on drive platform etc.) to matching 5-pin digital receiver (in cockpit etc.) becomes a "breeze" thanks to the CMRR-C5 conversion cable kit. This two-part kit connects the 5-pin digital receiver (e.g. CMM-30, KMC5 etc.) to the front end of the 6-pin remote control extension cable already fitted, and the other cable connects matching 5-pin remote control (e.g. CMR-30, MMR-20 etc.) to the other end thus eliminating the need to install yet another extension cable (e.g. CMC-RC-25, MMC-25 etc.). Please take a minute to review the install diagram prior to ordering.
If boat is pre-wired for multiple remotes (up to 3); purchase up to 2 CMRR-R2 for every CMRR-C5 kit.
» Connect Clarion 2020-Up 5-pin threaded digital remote controls (e.g. CMR-10, CMR-30 etc.) to Clarion digital media receivers (e.g. CMM-30 etc.) in any boat with a 6-pin remote control extension cable already fitted.
» Connect Kicker digital remote controls: (e.g. KRC55 etc.) to Kicker digital media receivers (e.g. KMC6 etc.) in any boat with a 6-pin remote control extension cable already fitted.
» Connect JL Audio digital remote controls (e.g. MMR-20 etc.) to JL Audio digital media receivers (e.g. MM55 etc.) in any boat with a 6-pin remote control extension cable already fitted.
» Includes matching 5-pin non-NMEA 2000® (male/female) connector/plug (fits 5-pin remote control /digital media receiver)
» includes matching 6-pin plug/connector. Fits 6-pin "remote control extension cable" (M101RC) or 6-pin splitter cable (M101RYC) already fitted.
» To install these new 5-pin threaded receivers/remotes; boat owner would need to run/install a new remote control extension cable (e.g. CMC-RC-25, MMC-25, KRCEXT25 CMC-RC-25, MMC-6 etc.).
» Two part kit and each cable is approximately 6 inches long.
» Not applicable to JL Audio MMR-40 NMEA 2000 with Micro-C connector
[Please read all requirements and warnings listed below prior to purchasing this part]
Who can benefit from the CMRR-C5 conversion cable kit?
1. Installing Clarion 3rd Gen. 5-pin remote control to matching receiver in any boat with a 6-pin remote control extension cable (e.g. M101RXC-RET, MW-RXC-RET etc.) already fitted.
2. Installing JL Audio 5-pin threaded remote control to matching receiver in any boat with a 6-pin remote control extension cable (e.g. M101RXC-RET, MW-RXC-RET etc.) already fitted.
3. Installing Kicker 5-pin threaded remote control to matching receiver in any boat with a 6-pin remote control extension cable (e.g. M101RXC-RET, MW-RXC-RET etc.) already fitted.
- The CMRR-C5 does not apply Clarion 1st nor 2nd Gen. radios/remote controls.
INSTALLATION (Only applicable if boat has a 6-pin remote control extension cable already fitted)
1. Locate 6-pin remote extension cable behind radio cavity.
2. Locate the 5-pin screw-on type remote cable on Clarion, Kicker or JL Audio digital receiver
3. Connect CMRR-C5 5-Pin male plug to the 5-pin radio remote cable connector.
4. Connect CMRR-C5 6-pin connector to the 6-pin plug on the remote extension cable.
5. Go to the remote control location and locate the other end of the 6-pin remote extension cable
6. Connect CMRR-C5 6-pin male plug to the 6-pin connector on the remote extension cable
7. Connect CMRR-C5 5-pin connector to the 5-pin remote control (e.g. CMR-10) plug.
See INSTALL DIAGRAM prior to ordering.
Footnotes:[See drop-down menu for reference]
* with 5-pin threaded "REMOTE" connector only.
Alert: The CMRR-C5 kit connects to the 6-pin extension cable cable already fitted. (Will not work without it)
1. Use to install Clarion, Kicker & JL Audio digital marine remote/receiver in any boat with a 6-pin remote extension cable already fitted.
2. Not suitable for brand mixing. Both the remote and radio must be of the same brand and boat must have a 6-pin remote extension cable already fitted.
3. Made by DiscountCarStereo.com for use on recent Clarion, JL Audio and Kicker digital marine products only.
