Connect and play portable audio devices on select 1994-99 Mercedes CD changer ready radios.
An auxiliary input adapter is one of the most basic ways to play a portable audio device on the car speakers, but the MBZ-AUX is anything but basic! In addition to audio playback, the new MBZ-AUX built-in USB port provides 5V/2.1A of charge which is more than enough to keep those power hungry devices charged while on the road. In addition, the MBZ-AUX supports TRRS which allows the radio SEEK button to change tracks on audio device while driving. (Audio device must Include a 4-pin TRRS jack). The MBZ-AUX Auxiliary Input adapter converts the radio 10-pin CD changer port in select 1994-99 Mercedes Benz into a 3.5mm input. This conversion allows users to connect and play many portable audio devices [ Smartphone, iPod, MP3, DVD, Satellite radio, car play, dongles etc.]. Because the MBZ-AUX connects connect directly to the factory radio; users can expect the best possible sound on the car speakers.
» Direct connection to factory radio using a vehicle specific harness (Not FM modulated).
» Easily adds CD quality input from iPods, Smartphones, Laptops, DVD players, MP3 players, etc
» Aux input selectable from the "CD" button on the radio.
» New!! Track up/down from radio or steering wheel SEEK buttons. (Device must support TRRS)
» Plug-n-play connection to the back of the radio in less than 20 minutes.
» New!! USB charging port (5V/2.1A) to keep devices charged while on the road
» Optional: 6 ft. dash mount USB extension cable (Click install guide below for details)
» CD changer (if present) must be disconnected and will no longer play.
[Please read all requirements and warnings below prior to purchasing this part]

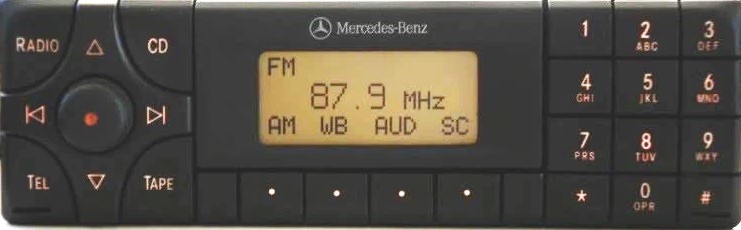

1. Works on Becker: BE1350, BE1394, BE1490, BE1492, BE1650, BE1690, BE1692, BE2210 Alpine: CM2296 and CM2396 radios in select 1994-99 Mercedes Benz.
2. Connects to 10-pin CD socket on radio. CD changer (if present) must be disconnected and will no longer function. Purchase our AUX-MB or BTA-MBCD to retain CD changer functionality.
3. Not suitable for 1999+ digital optic radios. See our A2D-MBFM
4. If a Bluetooth connection is preferred; purchase our BT2-MBR music streaming module.
» Aux module (2" x 2" x .78") x 1
» Free 4-pin 3.5mm male to male audio cable (3 ft. long) x1
» 10-pin Installation harness x1
Optional: 6 ft. dash mount USB extension cable (Click install guide below for details)
Footnotes:[See drop-down menu for reference]
*1999 S-Class with Becker BE1692 radios
Avoid costly returns. Click to review your INSTALL GUIDE prior to ordering.
1. Compatible vehicle MUST have a CD changer controlling radio.
2. 1999 S-Class with Becker BE1692 radio (See compatibility note #1), is compatible. 1999+ digital optic radios (e.g. Audio 10, 20, 30 etc.) are *NOT* suitable.
3. This module does not ship same day. It must first be assembled after which it is then shipped using shipping method selected at checkout.
