Ever wanted to upgrade your Jaguar X100 or X308 factory radio to support music from flash drives, streaming and hold hands free calls?
Using a phone in any way while driving can be dangerous and if your vintage Jaguar still runs great, but lacking support for more attractive modern media formats such as Bluetooth, flash drives etc. and if you are well beyond CD's, cassette tapes or listening to the same old commercials on the radio; the BT6-JAG98 module is for you! (1) Hands-Free Profile (HFP) is not only less distracting than trying to juggle a phone while steering but it’s also the only legal way to do it in many states. (2) Streaming audio (A2DP) allows users to stream internet music, turn-by-turn directions, podcast and more.(3) AVRCP allows the car radio and/or steering wheel SEEK buttons to change tracks, answer/end calls etc. (4) USB media player allows playback and control of MP3, WMA, Flac and other music formats on USB memory sticks or SD/SDHC cards in CD quality. USB charging port provides 5V/2.1A charging current to help maintain a charge on your devices while on the road and (5) AUX input includes a 3.5mm input jack to connect and play wired audio devices. After initial pairing and upon entering vehicle, your Smart device will automatically and wirelessly connect to the module hidden in the vehicle armrest or behind the dash. This clean solution leaves no wires or clutter on or around the dash and is the accessory you want if looking for Bluetooth connectivity without altering the dashboard components or investing in a new radio.
» Bluetooth 4.2 from any Smartphone or Tablet with A2DP (music streaming) and HPF (Hands-free) profiles
» Support for USB2.0 and 3.0.sticks up to 32GB (8GB recommended).
» Supports USB2.0/3.0 with the following audio files: MP2, MP3 (up to 320Kbit/s bit rate), WMA, FLAC (8, 16, 24 bit), ACC / MP4 / M4A, WAV, AIF, AIFC
» Last position memory microcontroller allows MP3/VWA files to resume playback from last position.
» MP3/WMA playback sequence according to saved order.
» Auto pair/unpair upon entering /exiting vehicle.
» Stream from Pandora, Deezer, Spotify, Tune-in, Apple music, SiriusXM and more.
» Radio mutes upon initiating or receiving calls (radio must be set to "Bluetooth" mode).
» New! Supports incoming call number/name announcement on car speakers. (Must enable setting on smartphone)
» Adaptive electric condenser cartridge with high sensitivity , low impedance, anti-noise microphone
» Supports a total of 6 folders (Albums) with unlimited number of files (tracks)
» Integrated USB charging port (5V/2.1A) to help keep those power hungry devices charged while on the road
» New! Bluetooth Wireless Audio Control (AVRCP) allows the radio or steering wheel "SEEK" buttons to change track and phone calls.
» 3.5mm aux input jack to connect and play portable audio devices.
» New! AVRCP supports means the steering wheel or radio SEEK buttons are used to change track, accept/decline phone calls and more.
» Connects directly to the back of the radio OR to the CD changer plug in luggage compartment (not FM modulated).
» Replaces the auto CD changer (if present)
» Optional: 6 ft. dash mount USB extension cable (Click install guide below for details)

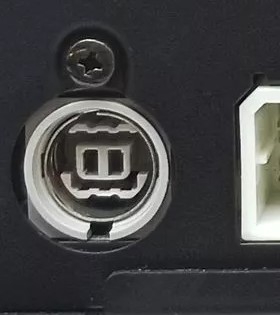

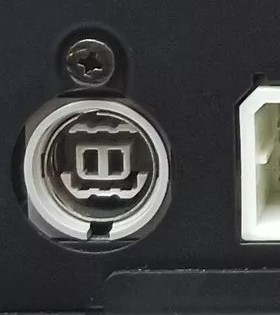

1. Works in late 1997 XK8* (X100) with Standard or Premium sound system. Connects behind the dash to the radio Ai-NET CD port .
2. Works in 1998-06 XK, XK8, XKR (X100) Standard or premium sound systems. Connects behind the dash to the radio Ai-NET CD port.
3. Works in 2000-06 Jaguar XK, XK8, XKR (X100) Premium sound systems. Connects to the Ai-NET CD plug in luggage compartment only. Does not connect to the radio.
4. Works in 1998-99 XJ, XJR, VP, Xj8, DE (X308) Standard or premium sound systems. Connects behind the dash to the radio Ai-NET CD port.
5. Works in 2000-03 XJ, XJR, VP, XJ8, DE (X308) Premium sound system. Connects to the Ai-NET CD plug in luggage compartment only. Does not connect to the radio.
6. Warning: In 2000+ Alpine Premium sound systems, the connection must be made to the Ai-NET CD plug in luggage compartment. Click the install guide link below for details.
7. If vehicle has a "CD" changer; it must be disconnected and will no longer function. Purchase our BTH-JAG98 to retain the auto CD changer.
» Main module 3.25"x 2"x 0.75")
» Visor microphone with visor clip on 10 ft. cable
» 16-pin Installation harness for connection at the radio (3 ft.) or 9 ft. for connection in luggage compartment x1
» AUX input cable (3 ft.)
Optional: 6 ft. dash mount USB extension cable (Click install guide link below for details)
Avoid costly returns. Please read entire INSTALL GUIDE, frequently asked questions prior to ordering.
Footnotes: [ See drop-down menu for reference]
* Late 1997 XK8 (X100) from VIN 01810 with
Ai-NET connector radios (e.g.
AJ9850R) etc.
Not for early 1997 XK (X100) radios with TAPE/CD button. Please check prior to ordering.
** In 2000-Up Premium audio systems, the module connects to the "CD" plug in luggage compartment.
1. Please verify your vehicle's audio system prior to ordering. Module connections (To CD changer plug in luggage compartment or to the radio) is determined by your vehicle's audio system.
2. Not applicable to other Jaguars (e.g. X350, X150 etc.)
3. CD Changer (if present) must disconnected and will no longer function. Purchase our BTH-JAG98 instead.
4. This kit does NOT ship same day. After assembly (2-3 days) it is then shipped using shipping method selected at checkout.
