Quick-n-easy wired remote control connection to a 2020+ Clarion, Kicker or JL Audio receiver using the 6-pin extension cable already fitted.
Any boat owner looking to install the newest Clarion, Kicker or JL Audio 5-pin threaded wired remote control (e.g. CMM-30, MM105 etc.) on the dive platform, transom etc. must install a 5-pin remote control extension cable (e.g. CMC-RC-25, MMC-25, KRCEXT25 etc.). Routing an extension cable in most boats is daunting, expensive and (in most instances); virtually impossible! but if the boat has a 6-pin extension cable; already fitted, connecting a 5-pin threaded remote (on drive platform etc.) to the corresponding receiver (in cockpit etc. is achievable without re-wiring thanks to the CMRR-C5 kit. This two-part cable kit connects the 5-pin digital receiver to the front end of the 6-pin remote control extension cable and connects the 5-pin remote control to the far end of the extension cable and thus eliminate installation of yet another extension cable. When replacing multiple remotes; purchase our CMRR-R2 along with the CMRR-C5.
Alert: The CMM-RC5 kit is suitable only if a 6-pin extension cable is already fitted or will be fitted..
» Connect a 2020+ 5-pin threaded digital marine remote control to corresponding digital receiver in any boat with a 6-pin remote control extension cable already fitted.
» Connect Clarion 5-pin threaded digital remote control (e.g. CMR-10, CMR-20, CMR-30 etc.) to a Clarion digital media receiver (e.g. CMM-10, CMM-30 etc.) using the 6-pin DIN remote control extension "boat cable" already fitted.
» Connect Kicker digital remote control: (e.g. KRC55) to a Kicker digital media receiver (e.g. KMC6 etc.) using the 6-pin remote control extension "boat cable" already fitted.
» Connect JL audio digital remote control (e.g. MMR-20 etc.) to a JL Audio digital media receiver (e.g. MM55 etc.) using the 6-pin DIN remote control extension "boat cable" already fitted.

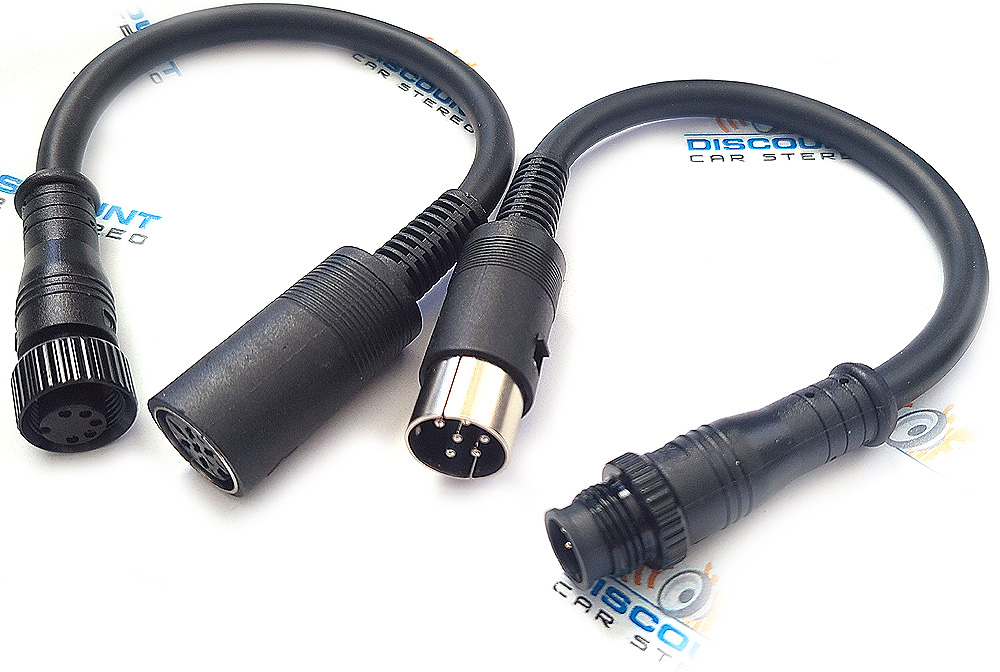

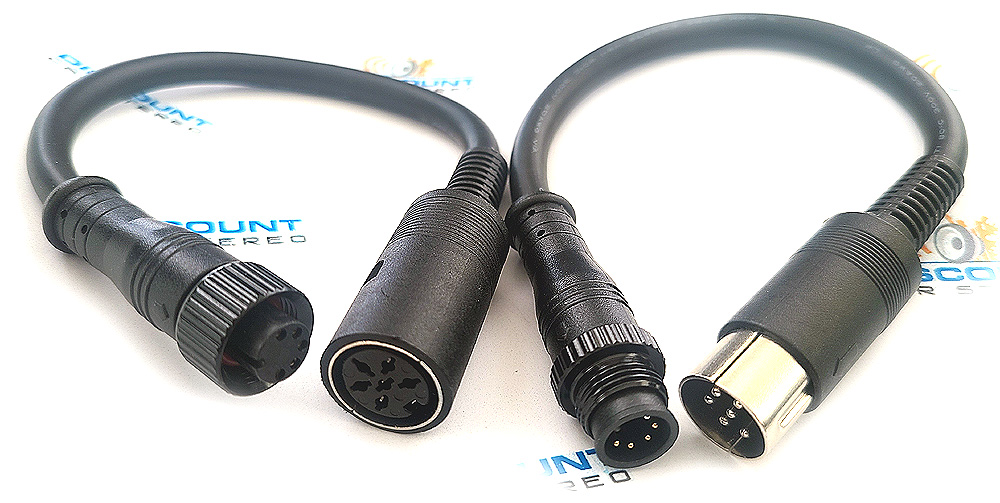

» Includes matching 5-pin non-NMEA 2000® (male/female) connector/plug (Fits the 5-pin remote plug on digital media receiver and remote)
» includes matching 6-pin plug/connector. Fits 6-pin "remote control extension cable" (M101RC) or 6-pin splitter cable (M101RYC) already fitted (6-pin extension cable required)
» Eliminates the need to run yet another remote extension cable (e.g. CMC-RC-25, MMC-25, KRCEXT25 CMC-RC-25, MMC-6 etc.).
» Each conversion cable is approximately 6 inches long.
» Not applicable to JL Audio MMR-40 NMEA 2000 with Micro-C connector
[Please read all requirements and warnings listed below prior to purchasing this part]
Who can benefit from the CMRR-C5 conversion cable kit?
- Any boat with a 1st generation 6-pin remote control extension cable (e.g. M101RXC-RET, MW-RXC-RET etc.) already fitted.
Conversely:
- 2nd generation (2009-Up) Clarion marine radios and wired remotes; use 8-pin DIN extension cable (e.g. MWRXCRET etc.) or a 6-pin DIN extension with the CCUMRA1 and/or CUMRA2 adapter.
- 3rd generation (2020-Up) Clarion, Kicker and JL audio digital marine source units (radios) and wired remotes requires a 5-pin non-NMEA 2000® extension cable (e.g. CMC-RC-25, MMC-6 etc.) or use the 6-pin DIN extension cable (already fitted), with our CMRR-C5 cable kit.
INSTALLATION (Only applicable if boat has a 6-pin remote control extension cable already fitted)
1. Locate 6-pin remote extension cable behind radio cavity. Note 6-pin remote extension cable required.
2. Locate the 5-pin screw-on type remote cable on Clarion, Kicker or JL Audio digital receiver

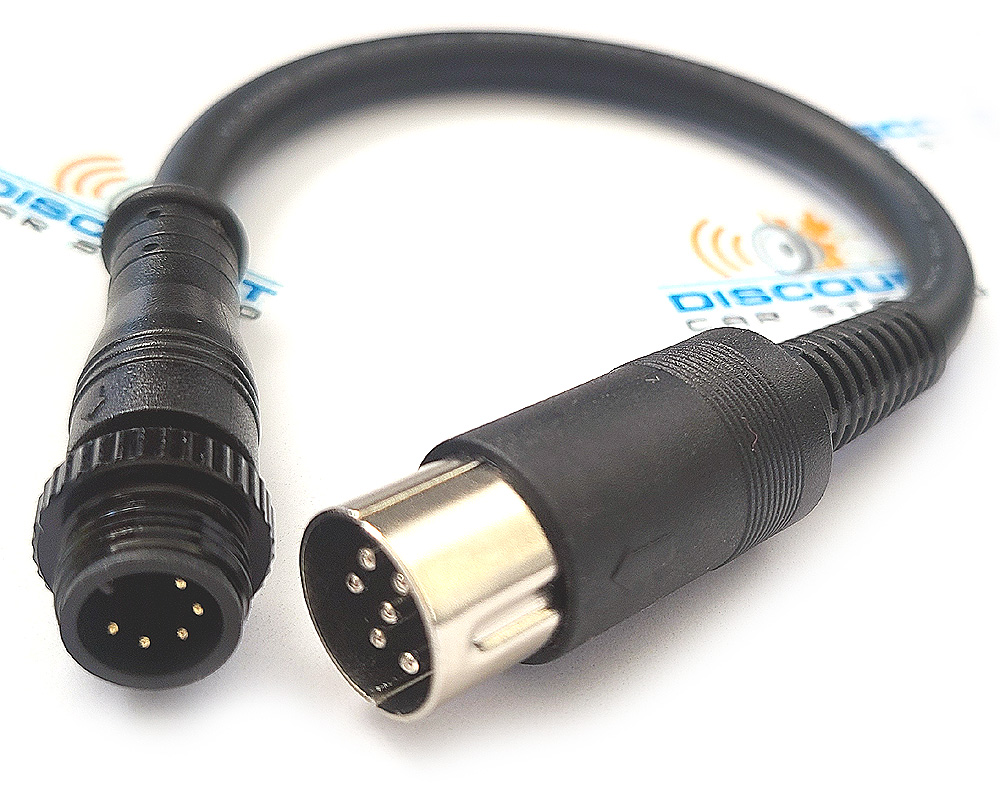

3. Connect CMRR-C5 5-Pin male plug to the 5-pin radio remote cable connector.
4. Connect CMRR-C5 6-pin connector to the 6-pin plug on the remote extension cable.
5. Go to the remote control location and locate the other end of the 6-pin remote extension cable

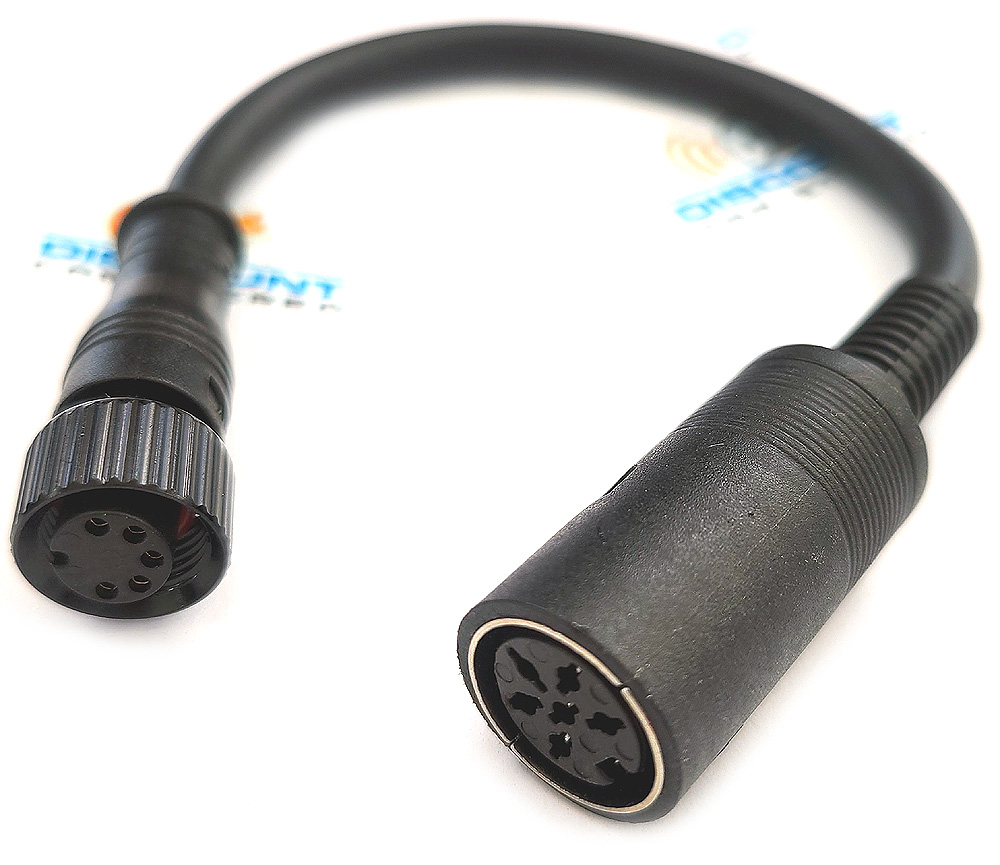

6. Connect CMRR-C5 6-pin female to the 6-pin plug on the remote extension cable
7. Connect CMRR-C5 5-pin connector to the 5-pin remote control (e.g. CMR-10) plug.

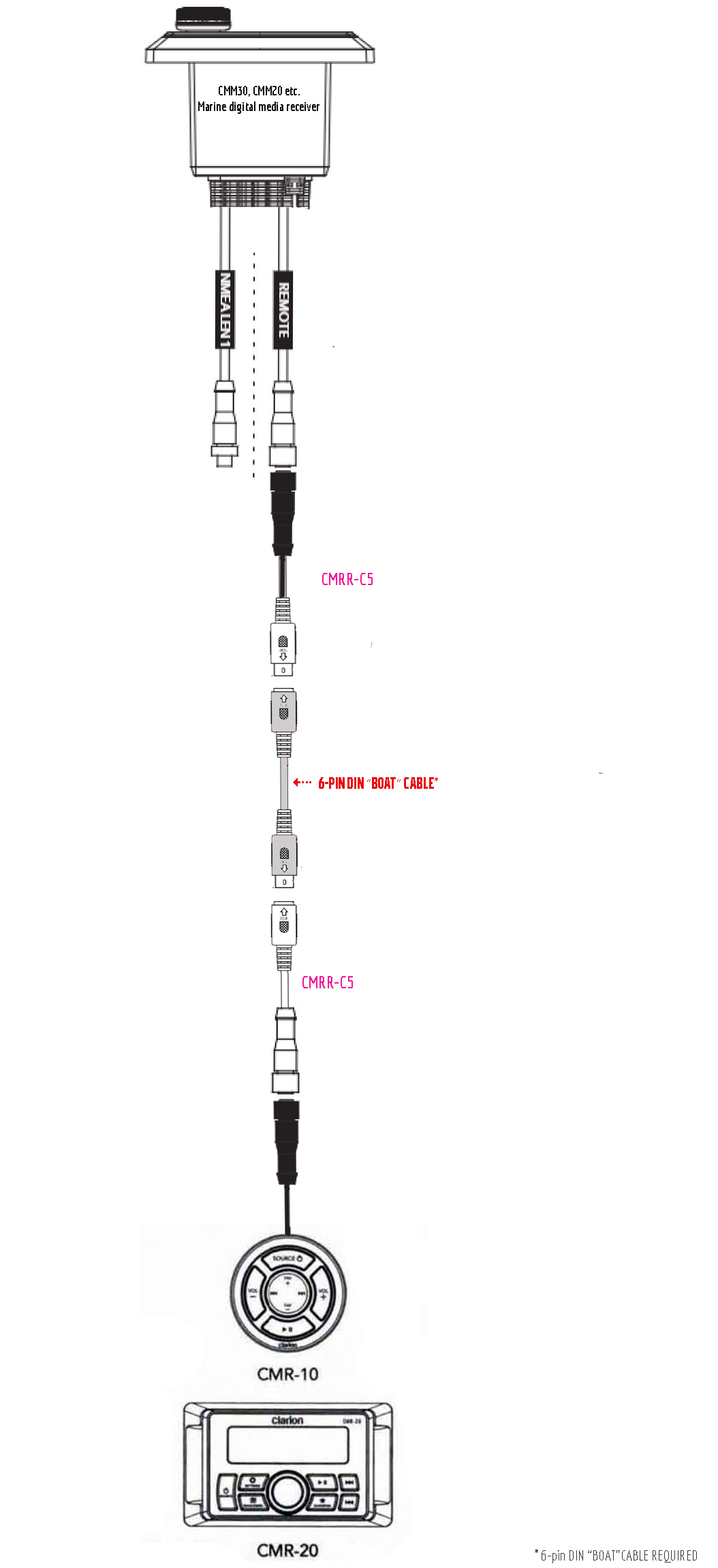

See INSTALL DIAGRAM prior to ordering.
Footnotes:[See drop-down menu for reference]
* must have 5-pin threaded connector (REMOTE) connector
Alert: The CMRR-C5 kit connects to the 6-pin extension cable cable already fitted. (Will not work without it)
1. Use to install recent Clarion, Kicker & JL marine remote/receiver in any boat with a 6-pin male to female extension cable. Must have 6-pin DIN extension cable already fitted.
2. Not suitable for brand mixing. Both the remote and source unit must be of the same brand and boat must have a 6-pin remote extension cable already fitted.
3. Made by DiscountCarStereo.com for use on recent Clarion, JL Audio and Kicker digital marine products only.
