With a Universal USB input, Bluetooth connectivity and more, the iSimple Connect iSGM651 (vr 1.5.187a.45d) is the most advanced OEM integration module available for linking smartphones, tablets, mp3 players and other portable media devices to the GM factory entertainment system. The iSimple Connect delivers the things that consumers are looking for most from an integrated kit: great sound, digital-quality audio, streaming audio (A2DP) of many Apple or Android devices, and battery charging via USB or Apple docking connector.
One discrete module hidden in your vehicle seamlessly connects your devices while providing control through your factory radio and steering wheel controls. This makes the Connect an affordable, easy-to-install solution for helping consumers get the mode of their potable devices while on the go.
• Audio playback/control, text display on factory radio from thumb drive, portable HD or other USB device
• Audio playback, browsing, and song text on factory radio from an iPod, iPhone, iPad or Android device.
• Built-in Bluetooth for Hands-free Calling (HFP), Audio Streaming (A2DP) and wireless Device Control Using Audio Video Remote Control Profile (AVRCP)
• 2.1Amp Charging for iPad and other compatible devices.
• Support for Optional HD Radio tuner (HDRT) with text displayed on Radio
• Support for Optional Aftermarket Sirius Tuner (SCC-1) or XM Tuner (SXV100/200) with text displayed on Radio
• Auxiliary Audio input (RCA or 3.5mm) for other portable audio devices.
• Plug-n-play installation
[Please read all requirements and warnings below prior to purchasing this part]
1. Fits select 2006-14 GM LAN (29-Bit) Radios with a "CAT" + "BAND" button combination OR "XM" button
2. 2012-Up Avalanche, Sierra, Silverado, Suburban, Tahoe & Yukon with NAV are *NOT* COMPATIBLE.
3. Works with GM Onstar, RSE* (except Cadillac SRS), CD Changer, Navigation* (see exception below)
4. HD Radio support requires the purchase of the HDRT (sold separately)
5. Aftermarket Sirius Satellite Radio support requires the iSSR11 harness & an SCC1 tuner (both sold separately, Canadian SCC-1C is not supported)
6. XM Satellite Radio support requires the iSSR12 harness & the SXV100 or SXV200 Tuners (both sold separately)
» iSGM651 interface adapter x 1

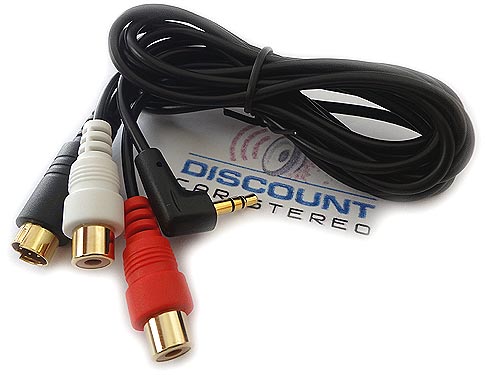

» Auxiliary input cable (PX35RCA) x1
» USB connecting kit (is43)

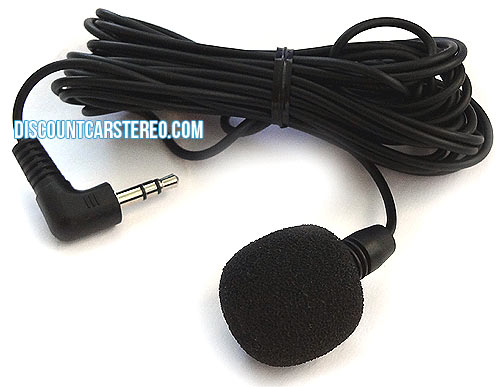

» Microphone Kit
» Click to review User Manual and Instruction Manual x1

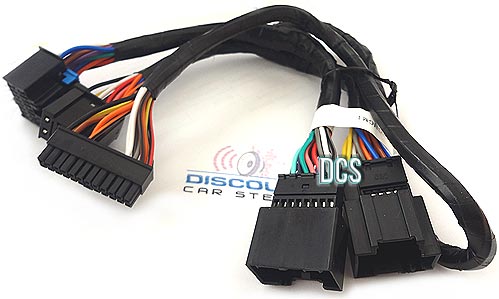

» PGHGM1 (14/16-pin) vehicle specific harness x1.
» Warranty Information sheet x 1
Footnotes: [See drop-down for reference]
* 2012-Up with Navigation are not compatible
** SRX with RSE (Rear Seat Entertainment) is not compatible
8-PIN Mini-DIN Inputs (left)
Port 1: Connect optional HDRT OR Aux cable PX35RCA(included).
Port 2: Connect optional Sirius SCC1 OR SVX100/200 XM Tuner
Connect USB Stick OR iPod/iPhone/iPad, Or Android device.

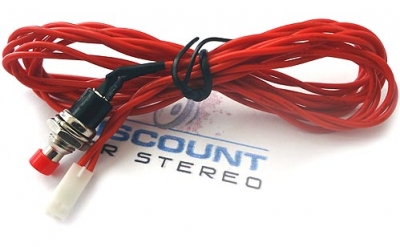

Reset switch Input (left)
24-pin Molex connector
Connect the PGHGM1 installation harness (included)
Set according to installation manual.
