Forget what you've heard about FM modulators, the A2D-C5FM module streams application and more from smart device into all C5 radios.
Thanks to the A2D-C5FM, Corvette vehicles owners are able to stream music applications directly into the radio via FM band. While this solution is not "perfect" the direct connection to the antenna is an improvement over FM transmitters which are prone to static/interference. All the driver has to do is designate a radio preset as a “streaming channel” (87.9 or 88.3MHz), turn on ignition/radio, pair smart device and enjoy favorite streaming services (e.g. Pandora, Apple music, Spotify etc.), GPS app (e.g. Waze etc.), podcast and more. Unlike wireless FM transmitters, this modulator kit connects directly to the C5 radio antenna socket to provide higher quality sound expected from a commercial FM radio station without having to switch between stations when traveling through different areas. With the radio turned "ON"; the Bluetooth module interrupts incoming antenna signal, delivering the strongest signal from smart device. Plug-n-play Installation requires connecting the radio antenna into module and connecting module into the radio antenna socket (Antenna adapter included). The A2D-C5FM provides FM radio quality sound and is a great alternative for 1997-04 Corvette radios lacking dedicated AUX input.
Avoid costly returns prior to ordering. Please read your Installation guide including Frequently asked questions.
» Modulates directly through Corvette radio FM band. Not an FM transmitter.
» Bluetooth 4.1 A2DP (music streaming) profile from any Smartphone, Tablet, Kindle and more.
Does not support phone calls.
» Selectable Frequency: 87.9MHz or 88.3MHz
» New! Incoming caller number announced on car speakers. (Must answer on handset)
» Interrupts incoming antenna signal for best sound performance.
» Stream internet music sites, Apple music, Navigation, Podcast, from any internet connected device
» Works with GM retained accessory power (RAP) -Plays up to 10 minutes after ignition switch is turned OFF)
» All controls remain with smart device. Use radio volume control button to adjust listening level.
[To avoid costly returns, It is important to observe all requirements, warnings and install guide information prior to purchase.]
1. Exclusive plug-n-play to 1997-04 Corvette (C5) original AM/FM/CD and AM/FM/TAPE radios with or without optional 12-disc changer.
2. Does not interfere with the operation of factory radio (CD player or Tape player) or CD changer.
3. Controls and display remain with smart device (e.g. Smartphone). C5 radio/display or buttons (except volume) do not apply
4. Module installs behind radio cavity with included PXHGM4 harness. Click installation guide link below for details.
5. Frequency range: 30 - 15000Hz +/-1dB, Signal to Noise Ratio: ≥5dB (1 ~ 100KHz) and max current draw: <50mA

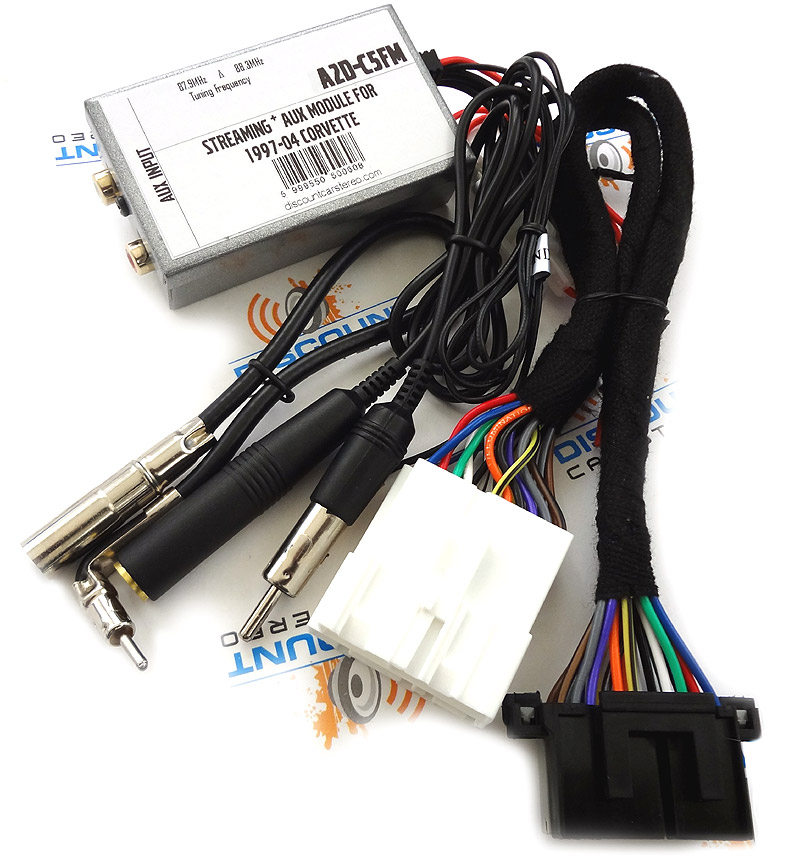

» FM modulator with Bluetooth module (3.25"x 2"x 1") x1
» PXHGM4 installation harness x1

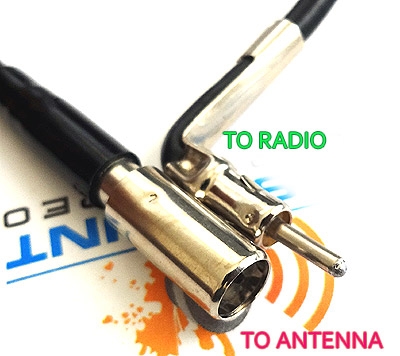

» Integrated antenna adapter kit (BAA34) x 1
[ See drop-down for reference]
* Installation performed behind the dash (radio removal required for install)
1. Plug-n-play connection behind dashboard to C5 radio.
2. Does not support Hands-free phone calls profile (HFP).
3. This kit does not ship same day. It must first be assembled (built) after which time it is then shipped using shipping method selected at checkout.
