Tired of listening to the same radio commercials, tapes or CD's? Upgrade older Fords to support media formats only available on newer cars.
Using a phone in any way while driving can be dangerous and if your older Ford still drives great, but lack support for more attractive modern media formats such as Bluetooth, flash drives etc. and if you are pass CD's, cassette tapes or listening to the same old commercials on the radio, the BT6-FRD04 module is for you! Hands-free Profile (HFP) is not only less distracting than trying to juggle a phone while steering but it’s also the only legal way to do it in many states. Streaming audio (A2DP) allows users to stream internet music, turn-by-turn directions and more. AVRCP support allows the car radio/steering wheel buttons to change tracks, answer/end calls etc. USB media player allows playback of MP3, WMA, Flac formats on USB sticks or SD/SDHC cards in CD quality. USB charging provides 5V/2.1A charging current to help maintain a charge on your devices while on the road. After initial pairing and upon entering vehicle, your Smart device will automatically and wirelessly connect to the module hidden behind dash.
» Bluetooth 4.2 A2DP profile for Hands-Free (HPF) and streaming (A2DP)
» Support for USB2.0 and 3.0.sticks up to 32GB (8GB recommended).
» Supports USB2.0/3.0 with the following audio files: MP2, MP3 (up to 320Kbit/s bit rate), WMA, FLAC (8, 16, 24 bit), ACC / MP4 / M4A, WAV, AIF, AIFC
» Last position memory microcontroller allows MP3/VWA files to resume playback from last position
» MP3/WMA playback sequence according to saved order
» Auto pair/un-pair upon entering /exiting vehicle.
» Support Incoming call number/name announcement on car speakers .(Setting must be enabled on smartphone)
» Radio mutes upon initiating or receiving calls (radio must be set to "AUX" mode).

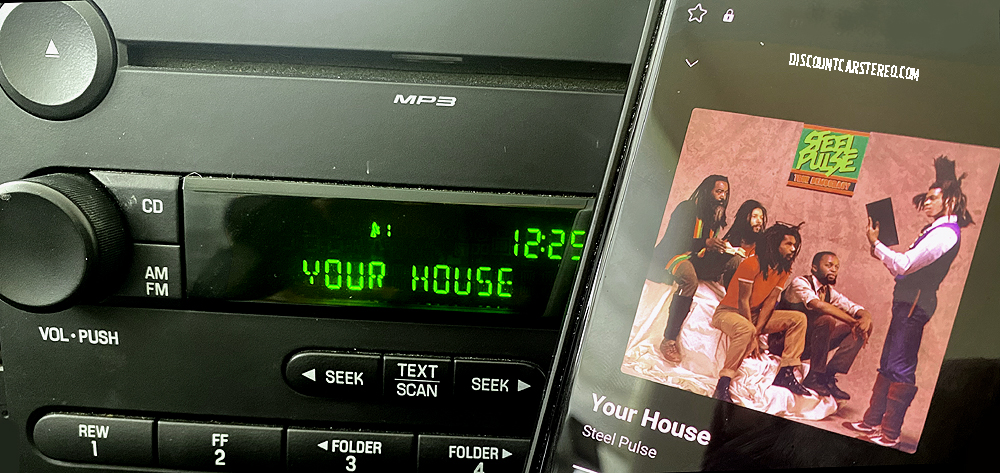

» Song name displayed on radio screen
» Adaptive electric condenser cartridge with high sensitivity , low impedance , anti-noise microphone
» USB charging port provides 5V/2A to charge your devices while on the road.
» Turn-by-turn directions, podcast, internet music services (Pandora, Spotify, TuneIn etc.) from connected smart device
» New!! Bluetooth wireless audio control (AVRCP) allows use of the radio or steering wheel "SEEK" buttons to track forward/backwards, answer or reject phone callas and more.
» No wires or clutter on or around the dash -- totally wireless
» Replaces Satellite Radio and/or Rear Seat Entertainment (RSE).
[These issues or circumstances may affect compatibility of our product with your radio or vehicle.]
1. Compatible with the select 2004-10 Ford, Lincoln, Mercury listed in drop-down .

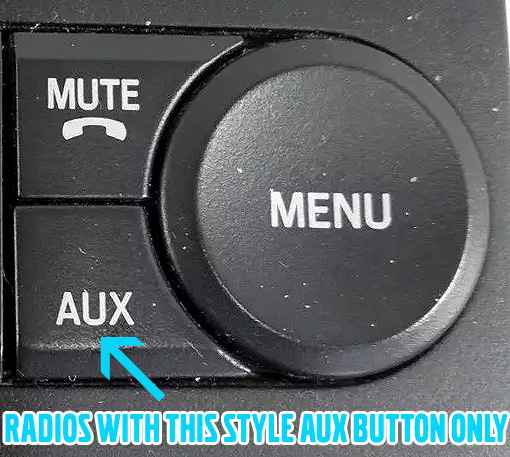

2. Compatible radios must have this AUX button and 16-pin connector
3. Requires disconnecting factory satellite radio and/or Rear Seat Entertainment (If present).
4. Not compatible if vehicle is equipped with Navigation radio or Ford Sync.

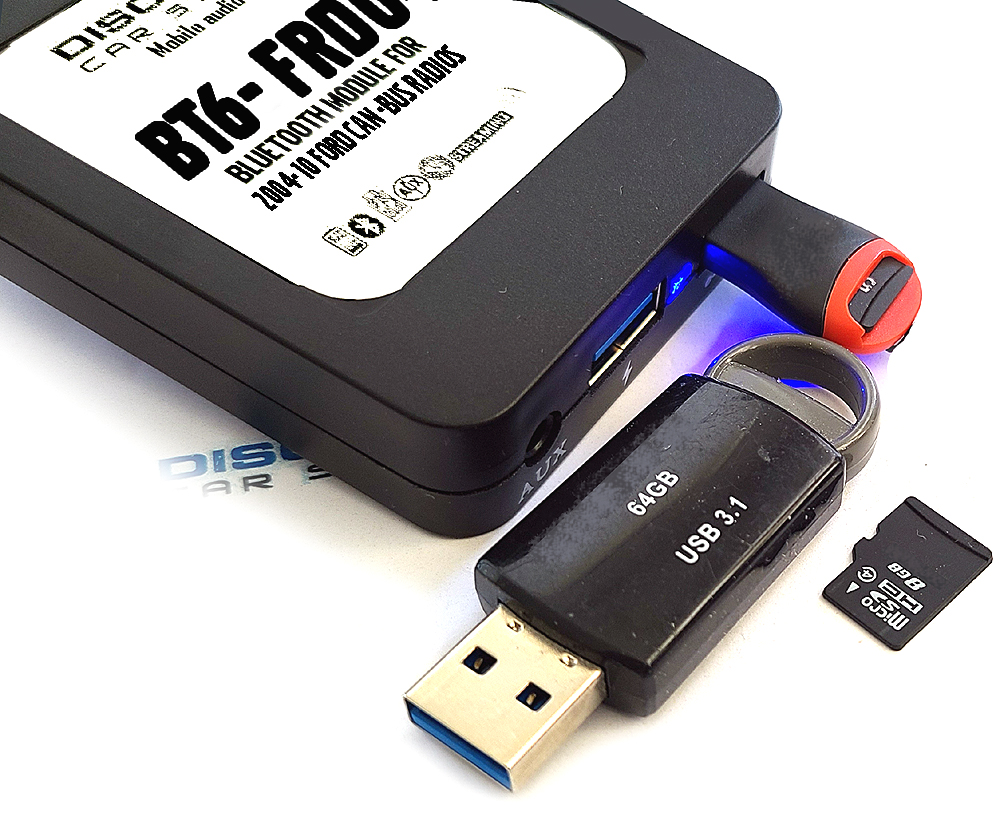

» Main unit (3"x 2"x 0.75")
» 16-pin male to female connecting harness x1
» AUX input cable (3 ft.)

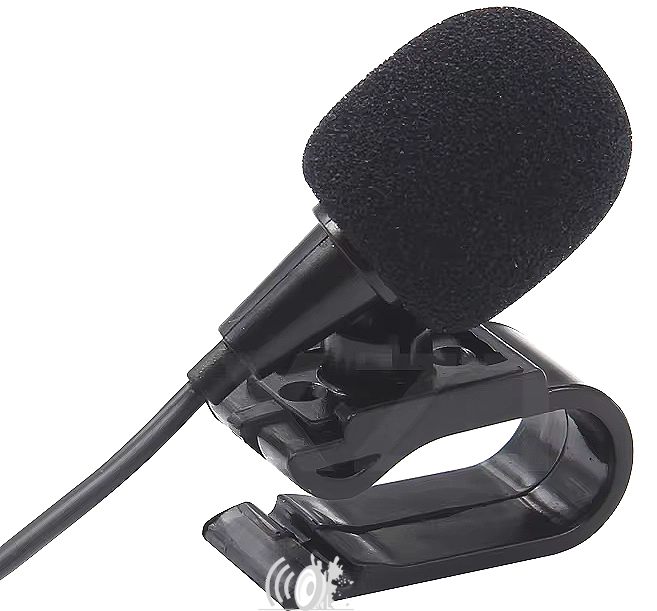

» Microphone with visor clip on 10 ft. cable x1 T-Tap x1
Optional: 6 ft. dash mount USB extension cable (Click install guide below for details)
FOOTNOTES: [See drop-down menu for reference]
* 2005 Five Hundred & 2005 Montego: With Non-Navigation 6 CD Radio Model#
5G1T-18C815-** only. Follow these
instructions to display radio model number
Avoid costly returns. Click to review your INSTALL GUIDE and Frequent asked questions.
1. Not for pre-2004 or post 2010 vehicles (radios may have similar appearance).
2. Supports Bluetooth music streaming. Not for Bluetooth Hands-Free Calls.
