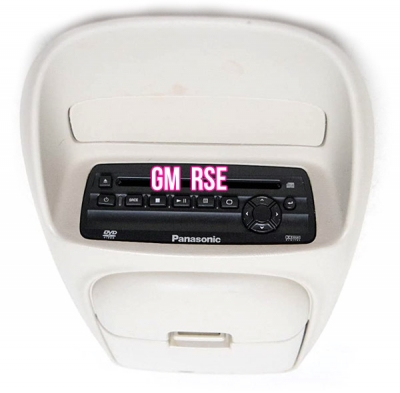

Stream applications from smart device in 2003-12 GM cars, trucks or SUV's equipped with hideaway XM tuner module (U2K) with or without RSE (DVD).

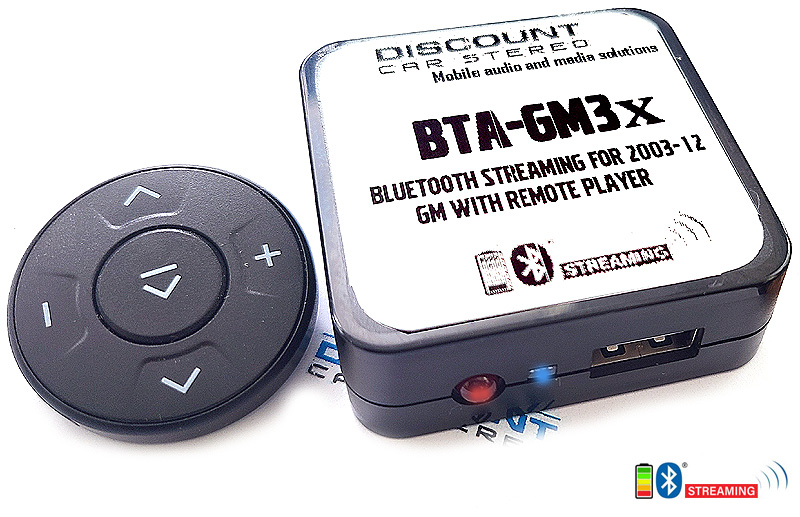

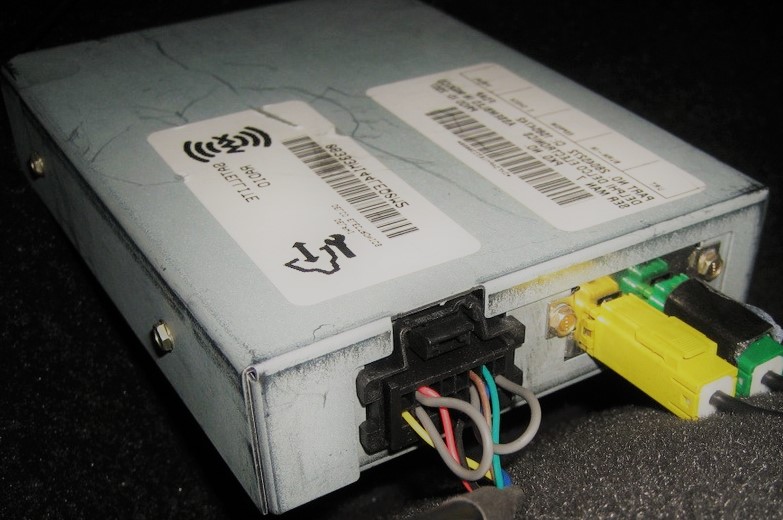

Did you know GM factory radio system is capable of supporting Bluetooth? If you're adamant about keeping the audio system and vehicle as original possible while also being able to get up to speed with advancements in audio technology; then all you need is a Smartphone, a hideaway XM tuner module and the BTA-GM3x module (formerly A2D-GM3x). That's right!! The BTA-GM3x retains original radio, XM and RSE (DVD) to enable any Bluetooth enabled device (e.g. Smartphone, Tablet, iPad, Echo Dot, Kindle etc.) to provide crystal clear playback for music and other applications (e.g. Pandora, Apple music, Spotify, Deezer, SiriusXM, Podcast, Waze etc.) on factory audio system. For the BTA-GM3x to work; the 2003-12 GM vehicle must have a hideaway XM tuner module (in remote area/not built-into AM/FM radio). To verify compatibility, turn vehicle radio on, press the BAND, AUX or XM button to cycle through FM1,FM2, AM, XM1/XM2; if XM1/2 appears; your vehicle supports the BTA-GM3x, but if only AM/FM is displayed; this module, sadly will NOT work. The BTA-GM3x connects to the 16-pin plug at the hideaway XM tuner module usually behind glovebox (trunks, SUV's etc.) or trunk/hatch (sedans). The integrated USB port provides 5V/2.1A charging current to keep those power hungry devices charged while on the road. When in the mood for XM (if subscribed); or DVD audio (on car speakers); simply press the "PLAY/PAUSE" button on the included remote control. This clean solution leaves no wires or clutter on or around the dash and is a welcome add-on to GM vehicles with XM module (active or expired subscription). If XM subscription has expired with no plan to activate in the future and vehicle does not have RSE (DVD); an AUX input is provided to which users are able to connect and play portable wired devices (e.g. MP3 player, car play, etc). This module does not support hands-free calls, purchase our BTH-GM3x instead.
» Supports Bluetooth 4.2 audio streaming profile (A2DP) only. Not for hands-free calls. See our BTH-GM3x instead.
» Quick and easy connection to XM tuner module in less then 20 minutes (Headunit/radio removal NOT required)
» Mutes stream upon initiating/receiving phone call. (calls made/received through handset).
» Auto-pair/un-pair upon entering/exiting vehicle.
» Enjoy Apple music, Pandora, Spotify, YouTube, Spotify , SiriusXM , Waze turn-by-turn directions and more
» Retains XM radio playback (if subscribed). See drop-down menu options.

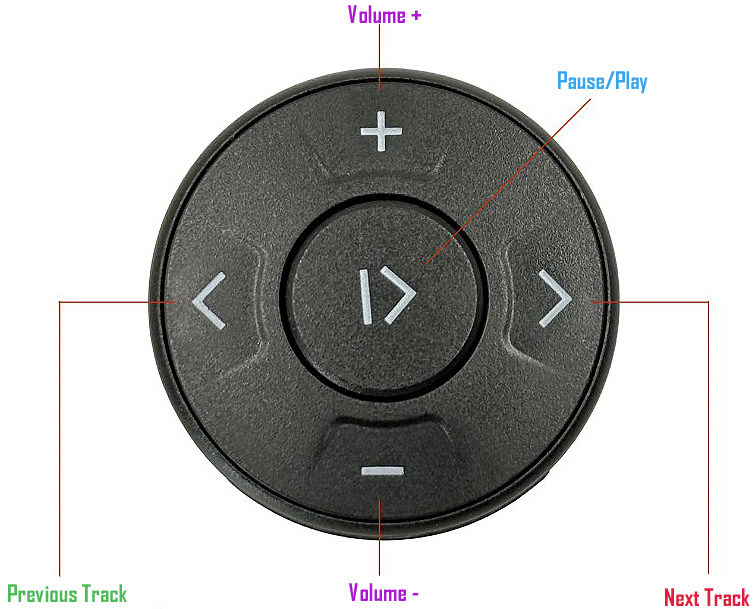

» New! Wireless remote for track, volume, play, pause and switch controls.
[Please read all requirements, warnings and installation guide prior to purchasing]
1. Works in 2003-12 GM Class-II vehicles listed in drop-down with XM tuner module (U2K) (Active or expired subscription)
2. Regardless of subscription status; vehicle must have a remotely mounted hideaway XM tuner module box.
3. To verify vehicle has the required XM module: Turn radio on press the "BAND" or "XM" button to cycle AM/FM/XM. If only AM/FM is displayed; this module will NOT work.
4. The BTA-GM3x connects/installs at the XM module in remote location. (Headunit/radio removal not required) - Click install guide link below for possible XM module location.
5. ALERT 1: If XM subscription has expired but plan to subscribe in the future; you must select "Active subscription" otherwise XM will not play upon renewal.
7. ALERT 2: If XM subscription has expired with no plan to subscribe in the future; select "Expired subscription" (an AUX input jack is provided).
» Main Unit x1 (2.2" L x 1.2" W x 0.7" H)
» Accessory power wire x1 (5 ft.)
» Wireless remote control with battery (CR2025) x1
» Male to male audio cable (3ft.) x1 (With expired subscription only)
» Optional 6 ft. dash mount USB extension cable (Click installation instructions link below for details)
Avoid costly returns. Please read entire INSTALL GUIDE and frequently asked questions prior to ordering.
Footnotes: [see drop-down menu for reference]
* Connects to XM module located on rear shelf (next to subwoofer). Or purchase our
BTA-CTS which connects behind the dash.
** In these vehicles hideaway XM module is at the very rear (trunk/hatch)
1. For this module to operate, vehicle must have and XM module box (subscription is optional). Select option from drop-down menu.
2. Supports audio streaming only. Does NOT support Hands-Free calls. (See our BTH-GM3x)
3. This module does not ship same day. It must first be assembled (built by hand) after which it is then shipped using shipping method selected at checkout.
